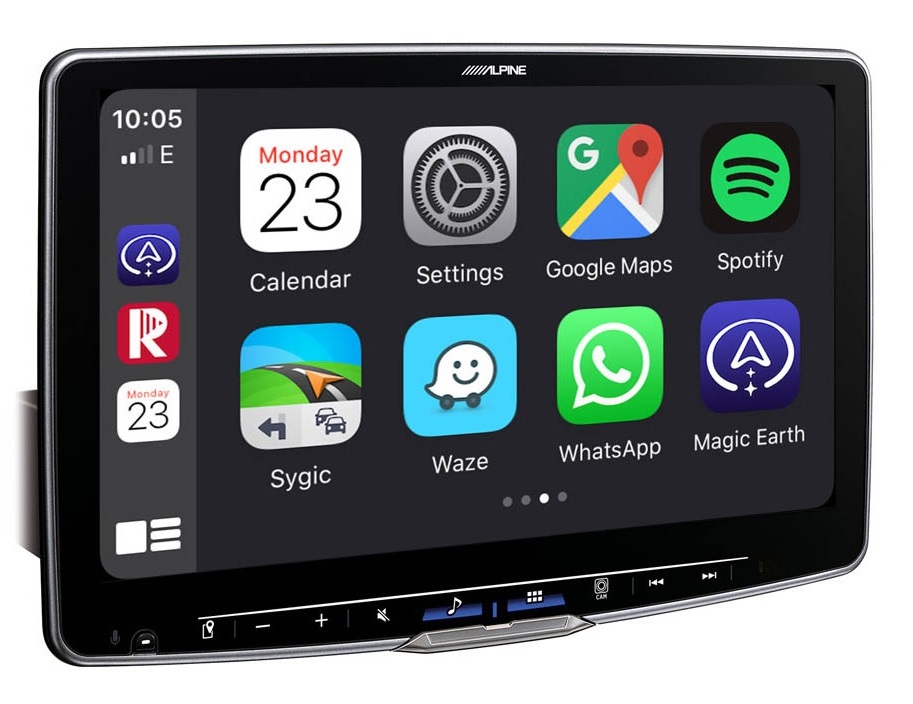

XXL 11-inch media-ontvanger met 1 DIN-chassis, compatibel met DAB+, Apple CarPlay en Android Auto
iLX-F115D
De iLX-F115D Alpine Halo 11 is de tweede generatie van Alpine’s wereldberoemde Halo-productlijn, voorzien van een gigantisch XXL 11-inch WXGA-touchscreen met hoge resolutie en is compatibel met vrijwel elk voertuig met 1DIN- of 2DIN-installatiedock. Deze Head Unit is vooral geschikt voor bestelwagens, pick-up trucks, campers of andere voertuigen met een groot dashboard – of gewoon voor elke gebruiker die op zoek is naar een maximale schermgrootte. Het superslanke display lijkt eenvoudig boven je dashboard te zweven en is op verschillende manieren te verstellen voor de beste positie.
Geniet van draadloze compatibiliteit met Apple CarPlay en Android Auto (bekabeld), DAB+ digitale radio, USB-videoweergave, hi-res audioweergave, Bluetooth handsfree en audiostreaming en nog veel meer met deze geweldige hoofdunit.
Breng uitzonderlijk goede geluidskwaliteit in uw auto: de Alpine Halo 11 is 's werelds eerste head-unit met een ingebouwde klasse-D-versterker en beschikt over een breed scala aan professionele geluidsafstemmingsfuncties, zoals 2-weg X-overs, een parametrische EQ, digitale tijdcorrectie en nog veel meer.
EIGENSCHAPPEN:
Radio / DAB Tuner
Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
Memory: Auto Memory
Seek Mode: Local, DX, Pre-Set, Service
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service) and DAB Service Following
RDS Fallback (where available)
Auto Ensemble/Service Memory
Service Search and PTY Search Function
Alphabet Search Function
BLUETOOTH®
Built-in BLUETOOTH® Module V4.2
HFP (Hands-Free Profile) Compatible
A2DP (Advanced Audio Distribution Profile) Compatible
AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Phone Book Synchronization
Speed Dial: 4 Preset Memory (per phone)
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: (Outgoing and Incoming)
24 Menu Languages
Microphone Included
Works with iPhone®
Compatible with iPhones featuring a lightning connector
Various search functions and Album Artwork Display
Battery Charging
Connectivity
Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam
Navigation Function
Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
Includes GPS enabled navigation antenna
USB Media Connection
2x USB cable included
USB port 1: data port / USB port 2: charging port
Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
Video Playback: MP4, MOV, FLV, MKV compatible
Supported Video Coding: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
Various search functions included
Sound Tuning
Bass Engine SQ and Bass Engine PRO sound tuning
Subwoofer Level Adjustment
4V PreOut
10 Equalizer PreSets
13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
6-Channel Digital Time Correction
2-way Digital Crossover
Independent Source Volume Level Setting
For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section
General
4x 50 Watts Class-D High Power Amplifier
11-inch Capacitive Touch-Screen XWGA Display (1280 x 720p)
Display angle adjustable after installation
3 PreOuts (4V, Front / Rear / Subwoofer)
1 A/V AUX Input (3.5mm micro jack)
1 HDMI input / 1 HDMI output
2 USB Ports (1x USB data port / 1x USB charging)
Steering Wheel Remote Control Ready
Vehicle Display Interface Ready (UART connection)
Remote Control Ready
2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
Camera Distance Guides (adjustable)
Live Contrast Adjustment
Menu Language: 24 Languages
Auto Dimmer
Anti-theft security code
Engine Start-Stop unaffected
Installation
Various vehicle specific installation kits available
SPECIFICATIONS
Screen
Screen Size: 11-inch Capacitive XWGA
Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL
Max Power Output Ratings
Max Power Output: 4 x 50 W
Radio / DAB Tuner
FM Tuning Range: 87.5 - 108.0 MHz
AM Tuning Range: 531 - 1,602 kHz
DAB band III: 174 – 240 MHz
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB / 90 dB
DAB audio format: DAB / MPEG 2, DAB+/AAC, DMB Profile 1/ BSAC / DMB profile 2 / AAC
WiFi
Reception Frequency: IEEE 802.11 B/g/n (2.4GHz)
Channels: 1 – 13 ch (2.4 GHz)
Security Protocols: WPA3 / WPA2-PSK (TKIP, AES)
USB
USB Requirements: USB 2.0
USB 1: data port / 2,400mA (Mass Storage Class)
USB 2: charging port / 1,500 mA (CDP support)
USB Class: Mass Storage Class, Play From Device
File System: FAT16 / FAT32 / exFAT
FLAC, MP3, WMA, AAC, WAV, APE Decoding
Video Playback: MP4, MOV, FLV, MKV compatible
Supported Video Coding: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
GPS
GPS compatible navigation antenna included
GPS frequency: 1575.42 +/- 1.023 MHz
Reception sensitivity (search): - 136 dB max
BLUETOOTH®
BLUETOOTH® Version: Bluetooth V4.2
Output Power: +4 dBm Max. (Power class 2)
HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)
Supports LDAC Audio Codec
Sound Tuning
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5 Modes, Level 0 to +6
For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
HDMI Section
Input Format 720p / 480p / 480i
General
Power Requirement: 14.4 V. DC (11-16 V allowable)
Pre Output Voltage (Before Clipping): 6 V / 10k ohms
Dimensions
Weight: 2.6 kg
Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
Display Size (W x H x D) mm: 269 x 178 x 55 mm
Please Note:
Due to the weight of the large screen, we do not recommend fitting this radio in dashboards only with use of a traditional type of 1DIN frame. Please use radio kits that are properly rooted in the dashboard.
