General
The NavInc interfaces allow for connecting video sources to the original
navigation system of Audi.
The interface ensures that an input is created on the original navigation
system, on which various external video sources can be connected (e.g. DVD
player, DVB-T TV, iPod, reversing camera, external navigation systems, etc.).

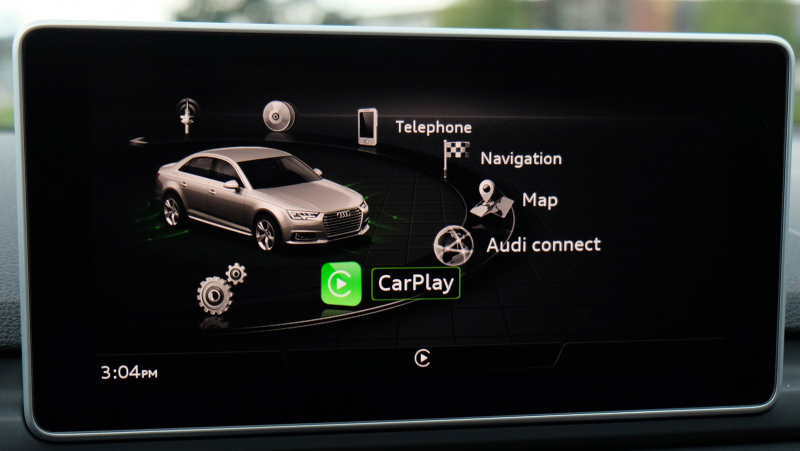

The images will be displayed on the navigation screen. The audio of the video
sources must be submitted via an AUX input or FM modulator.
Features
- RGB input (Connecting external navigation system)
- 3x Audio/Video input (connect video sources, TV / DVD / iPod)
- Camera input (connecting reversing camera)
- Video output (connect headrest screens)
- PAL / NTSC support
- Audio output (audio link to the original audio system)
- Image retention while driving
- Adjustable parking lines
- Can be extended with touch screen (controls of A/V source via touch screen)
- CE-approved
Activation
It is possible to switch between the video sources with the delivered button
and/or remote control or through the steering wheel button:
iNAV button
iNAV short: back to MMI
iNAV long: toggle between RGB-AV1-AV2-AV3-RGB
OSD menu
Through the interface menu, various settings can be adjusted for optimal
image, namely;
- Tint
- Brightness
- Contrast
- Sharpness
- Display position
Camera function
Via the camera input of the interface an aftermarket camera system can be
connected to the navigation system. The camera image will be displayed
automatically on the screen when the car is put in the reverse gear. The
camera input knows 2 views:
1: Camera with Picture in Picture of the Parking assist
2: Full camera view
PIP view van OEM PDC
Parking guidelines
In the camera image on screen parking guidelines can be displayed. This
makes it much easier to determine the distance to the object you are driving
towards. The guidelines are adjustable horizontal as well as vertical so the lines
can be adjusted to the car.
Intelligent Park Assist System (IPAS)
The interface have also the Intelligent Park Assist System (iPAS). With this
function the guidelines will respond on the steering wheel position. The guide
lines are adjustable horizontal and vertical via the interface OSD menu.
Video output
The video output connection can be used for linking headrest monitors or roof
monitors. Sources connected to the interface will also be shown on the screens
in the back.
Touch option
It is possible to control the connected Audio/Video ( AV1 and AV2) source via
touch screen (touch glass optional). The buttons of the remote control can be
taught via the infrared eye . The remote buttons are then projected onto the
screen and can be controlled via the touch glass.
The following is provided in the set:
- NavInc A/V Interface IF-AUDI-5GPV
- Cable set
- Installation- and user manual
- Warranty
- Invoice
Product specifications
Voltage: 12V – 24V DC
Voltage-operating capacity: 8 – 18V DC
Standby current: 0 mA
Operating current: 5 Watt max.
Power input: 12V
Temperature range: - 30°C up to + 80°C
Weight: 250grs
Dimensions(W x H x D): 130 x 20 x 102mm
Additional information:
- Check at the tab “compatibility” on top of this page if your radio or navigation
system is suitable for this product.
- Audio of the connected video source must be linked to the AUX input of car,
FM modulator, USB or iPod interface.
- No constant voltage needed (+30) therefore the interface is much more
stable.
- ”Mute” function for the video inputs which are not used.
- Use of a metal casing and new components (not Chinese or remanufactured
components).
Legal information:
The driver ofthe vehicle should not be inferred from the motion images. In
many countries, watching movies while driving is prohibited. Therefore we
accept no responsibility for material or personal injuries, directly or indirectly,
due to installation of the interface modules.
Interface and Software basic information:
The NavInc interfaces are no navigation systems or screens to replace the
navigation system. The NavInc interfaces enable the possibilities to connect
different Audio/Video sources to the navigation system.
Manufacturers create adjusted software and hardware versions, options and
enhancements which ensures that the compatibility of the products cannot be
guaranteed 100%. Compatibility lists are based on customer feedback and
experiences and will constantly be updated for optimal customer support.
Geschikt voor de volgende modellen van Audi:
A6 2015-201>
A7 2015-201>
A8 2015-201>
In combinatie met een van de volgende systemen:
MMI 5G MIB
Opmerking:
- Alleen in combinatie met MMI 5G MIB navigatiesysteem
- Installatie ook mogelijk in combinatie met originele TV-tuner
- AUX-output van de interface dient verbonden te worden met een AUX
interface van de auto
- Interface is ook stand alone te gebruiken voor achter- en/of vooruitrijdcamera
functie.
- Bediening van de aangesloten Audio/Video bronnen mogelijk via de optionele
touch screen
Geschikt voor:
Audi A6 2015-2019
Audi A7 2015-2019
Audi A8 2015-2019
