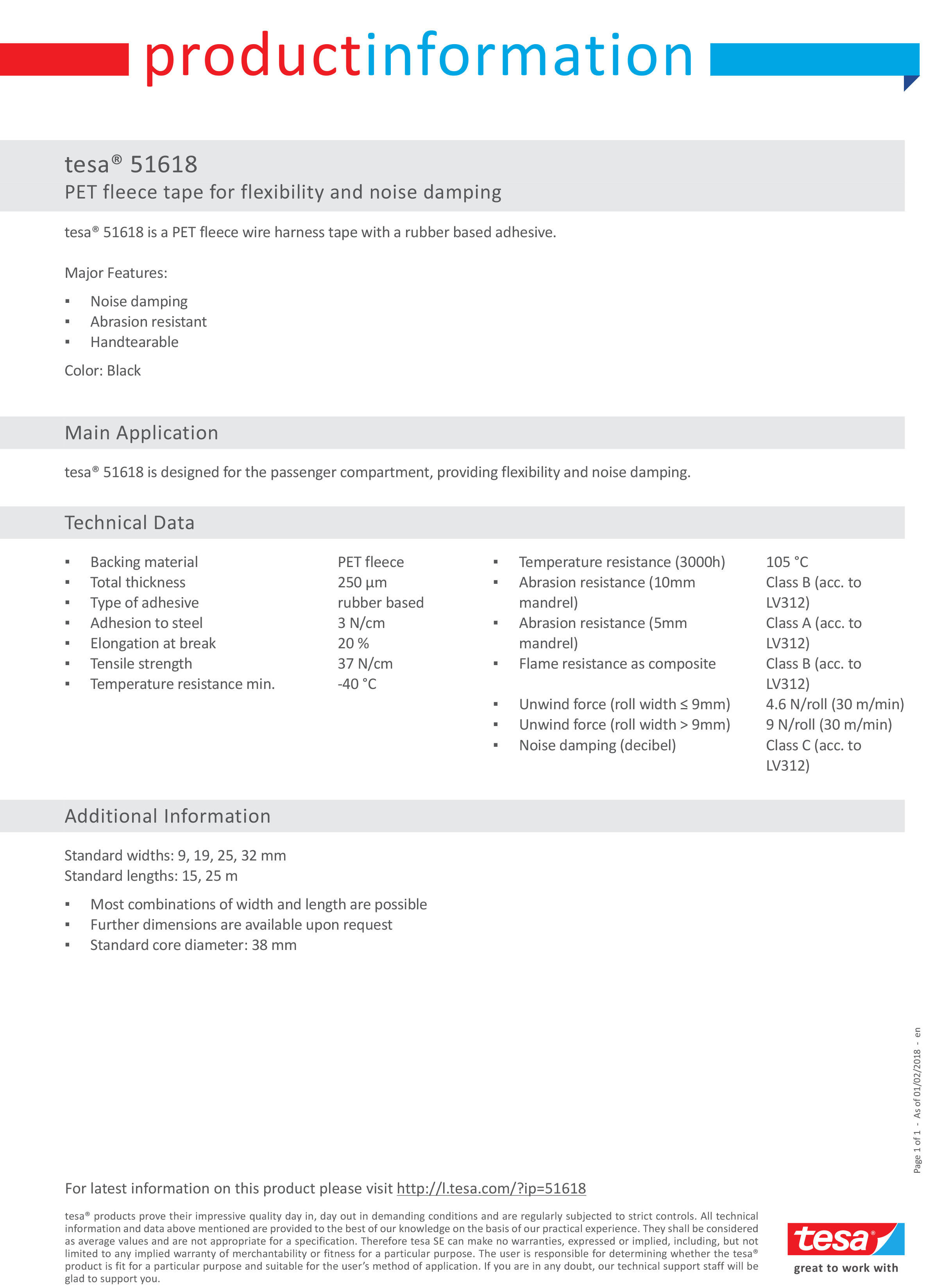

PET fleece tape for flexibility and noise damping
Product description

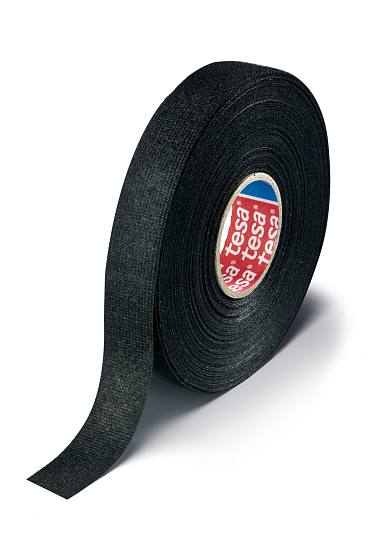

tesa® 51618 is a PET fleece wire harness tape with a rubber based adhesive.
Major Features:
•Noise damping
•Abrasion resistant
•Handtearable
Color: Black
Main applications
tesa® 51618 is designed for the passenger compartment, providing flexibility and noise damping.
Technical properties
Backing material PET fleece
Total thickness 250 µm
Type of adhesive rubber based
Adhesion to steel 3 N/cm
Elongation at break 20 %
Tensile strength 37 N/cm
Temperature resistance min. -40 °C
Temperature resistance (3000h) 105 °C
Abrasion resistance (10mm mandrel) Class B (acc. to LV312)
Abrasion resistance (5mm mandrel) Class A (acc. to LV312)
Flame resistance as composite Class B (acc. to LV312)
Unwind force (roll width = 9mm) 4.6 N/roll (30 m/min)
Unwind force (roll width > 9mm) 9 N/roll (30 m/min)
Noise damping (decibel) Class C (acc. to LV312)
Geschikt voor:
Kabelbundel Tape
